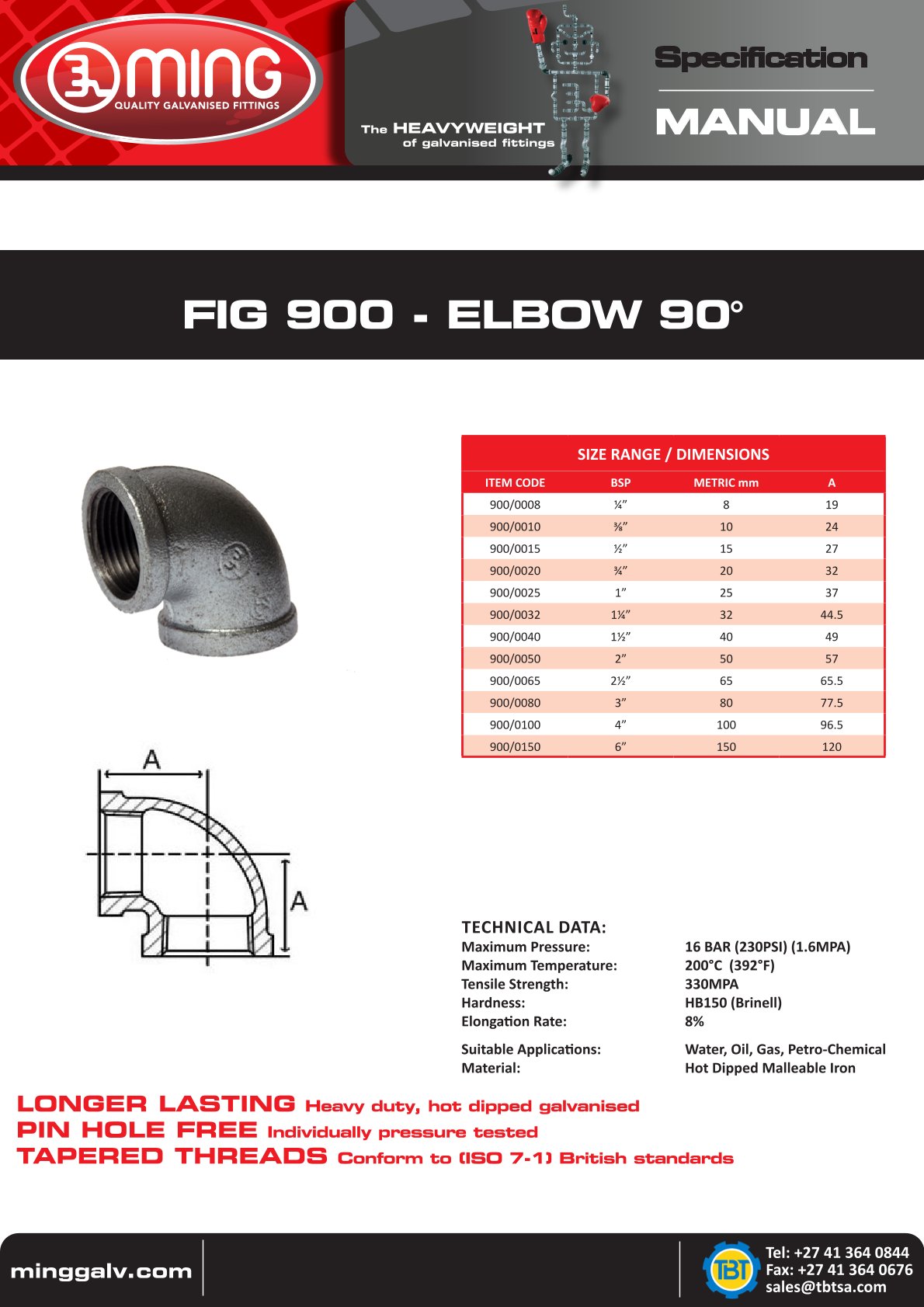

FIG 900 - 90° Elbow

Features:
MING hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.

Pressure Conversion
=
Powered by CalculateStuff.com

Dimensions Table

Item CodeBSPMetric ConversionA
900/00081/4"8mm19mm
900/00103/8"10mm24mm
900/00151/2"15mm27mm
900/00203/4"20mm32mm
900/00251"25mm37mm
900/00321 1/4"32mm44.5mm
900/00401 1/2"40mm49mm
900/00502"50mm57mm
900/00652 1/2"65mm65.5mm
900/00803"80mm77.5mm
900/01004"100mm96.5mm
900/01506"150mm120mm
