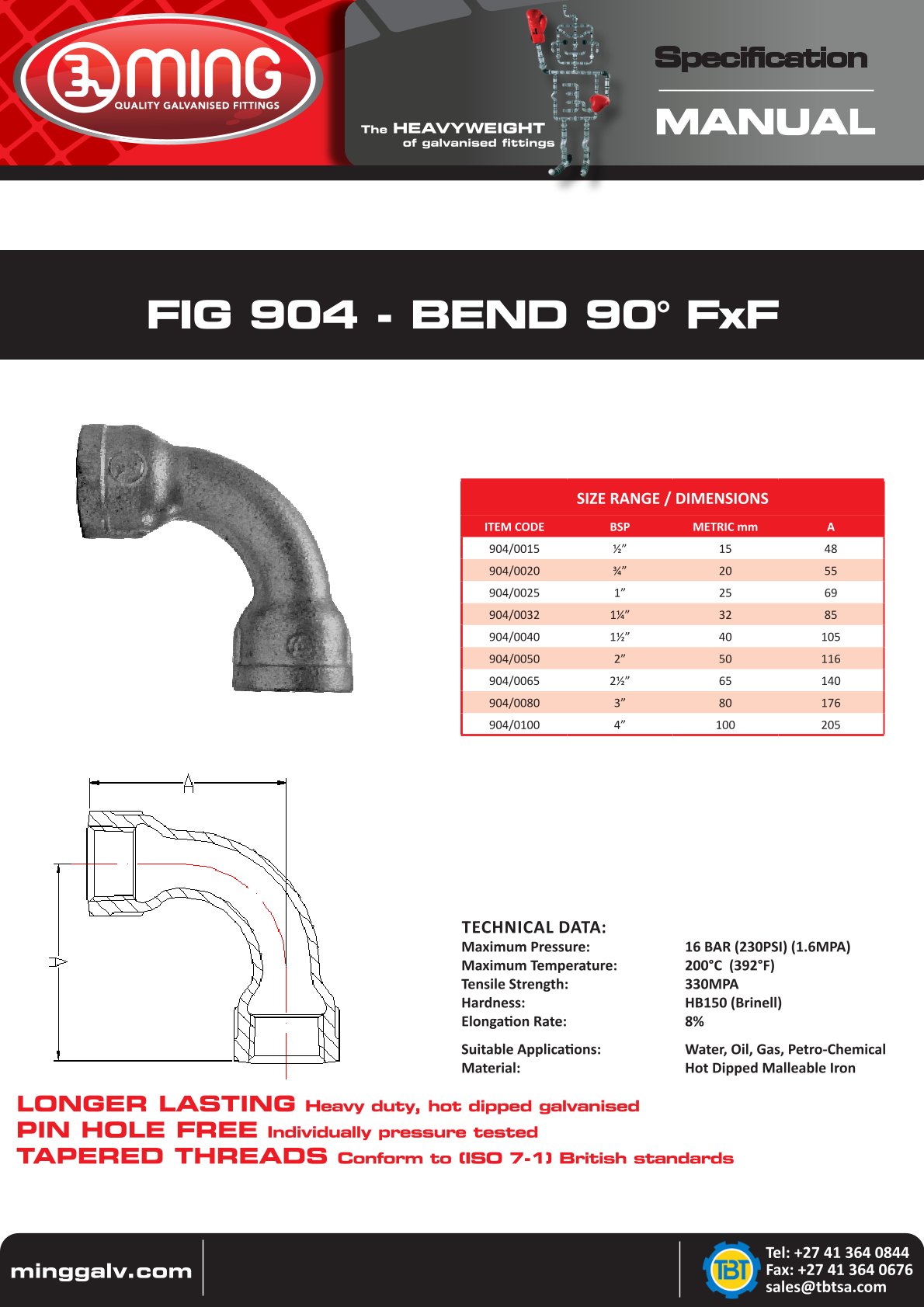

FIG 904 - 90° Bend FxF

Features:
MING hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.

Pressure Conversion
=
Powered by CalculateStuff.com

Dimensions Table

Item CodeSizeMetric ConversionA
904/00151/2"15mm48mm
904/00203/4"20mm55mm
904/00251"25mm69mm
904/00321 1/4"32mm85mm
904/00401 1/4"40mm105mm
904/00502"50mm116mm
904/00652 1/2"65mm140mm
904/00803"80mm176mm
904/01004"100mm205mm
