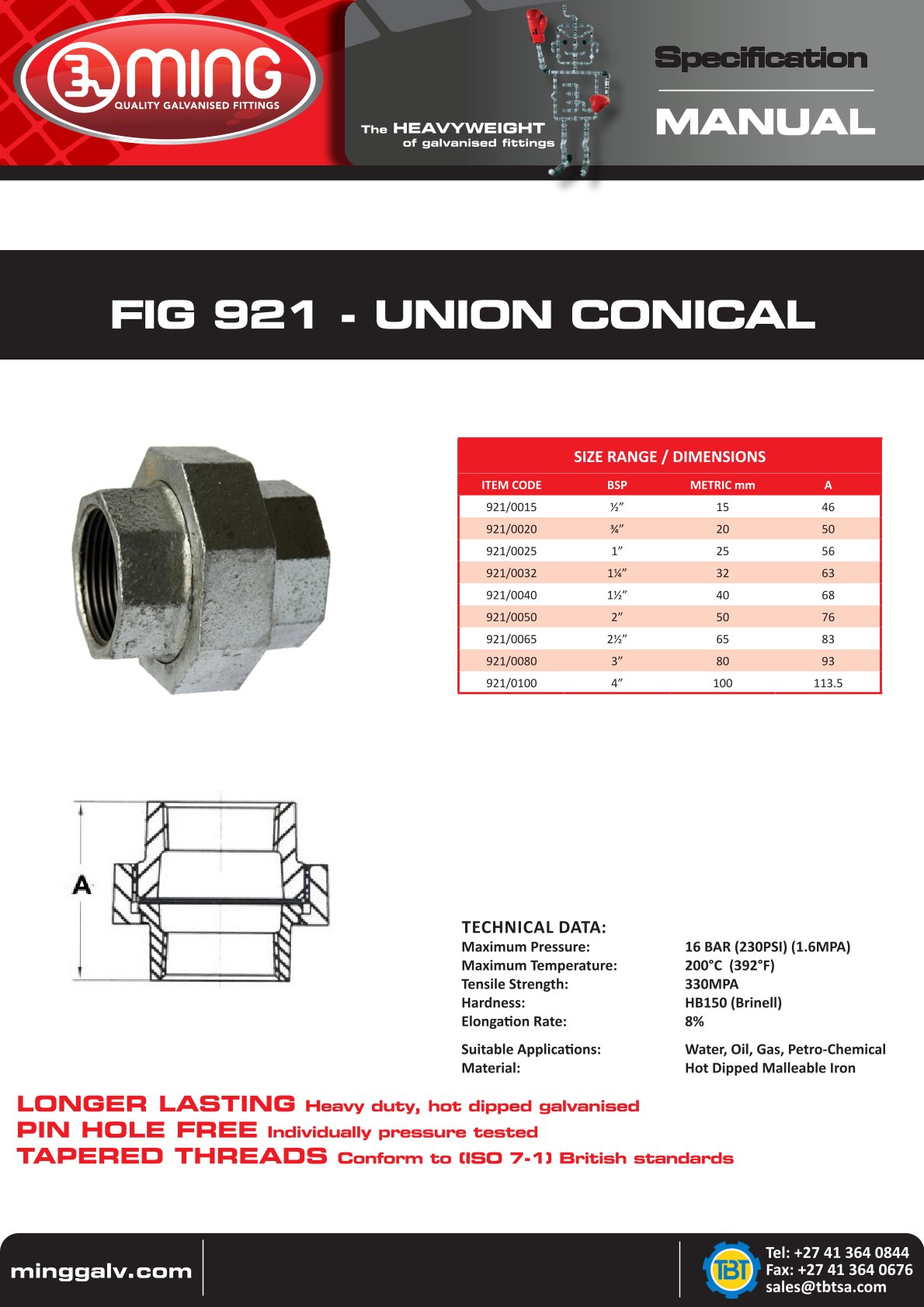

FIG 921 - Union Conical

Features:
MING hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.

Pressure Conversion
=
Powered by CalculateStuff.com

Dimensions Table

Item CodeSizeMetric ConversionA
921/00151/2"15mm46mm
921/00203/4"20mm50mm
921/00251"25mm56mm
921/00321 1/4"32mm63mm
921/00401 1/2"40mm68mm
921/00502"50mm76mm
921/00652 1/2"65mm83mm
921/00803"80mm93mm
921/01004"100mm113.5mm
