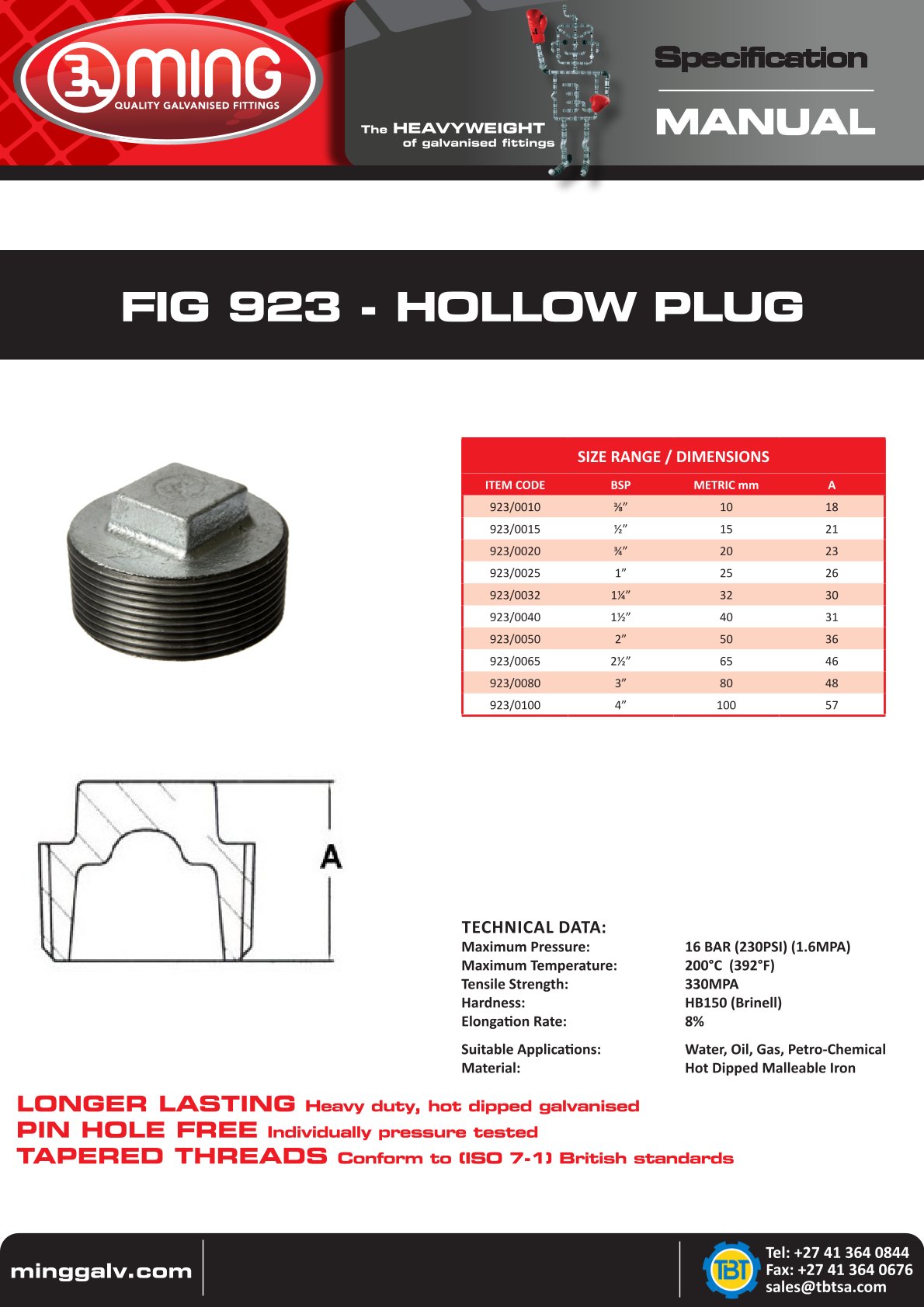

FIG 923 - Hollow Plugs

Features:
MING hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.

Pressure Conversion
=
Powered by CalculateStuff.com

Dimensions Table

Item CodeSizeMetric ConversionA
923/00103/8"10mm18mm
923/00151/2"15mm21mm
923/00203/4"20mm23mm
923/00251"25mm26mm
923/00321 1/4"32mm30mm
923/00401 1/2"40mm31mm
923/00502"50mm36mm
923/00652 1/2"65mm46mm
923/00803"80mm48mm
923/01004"100mm57mm
