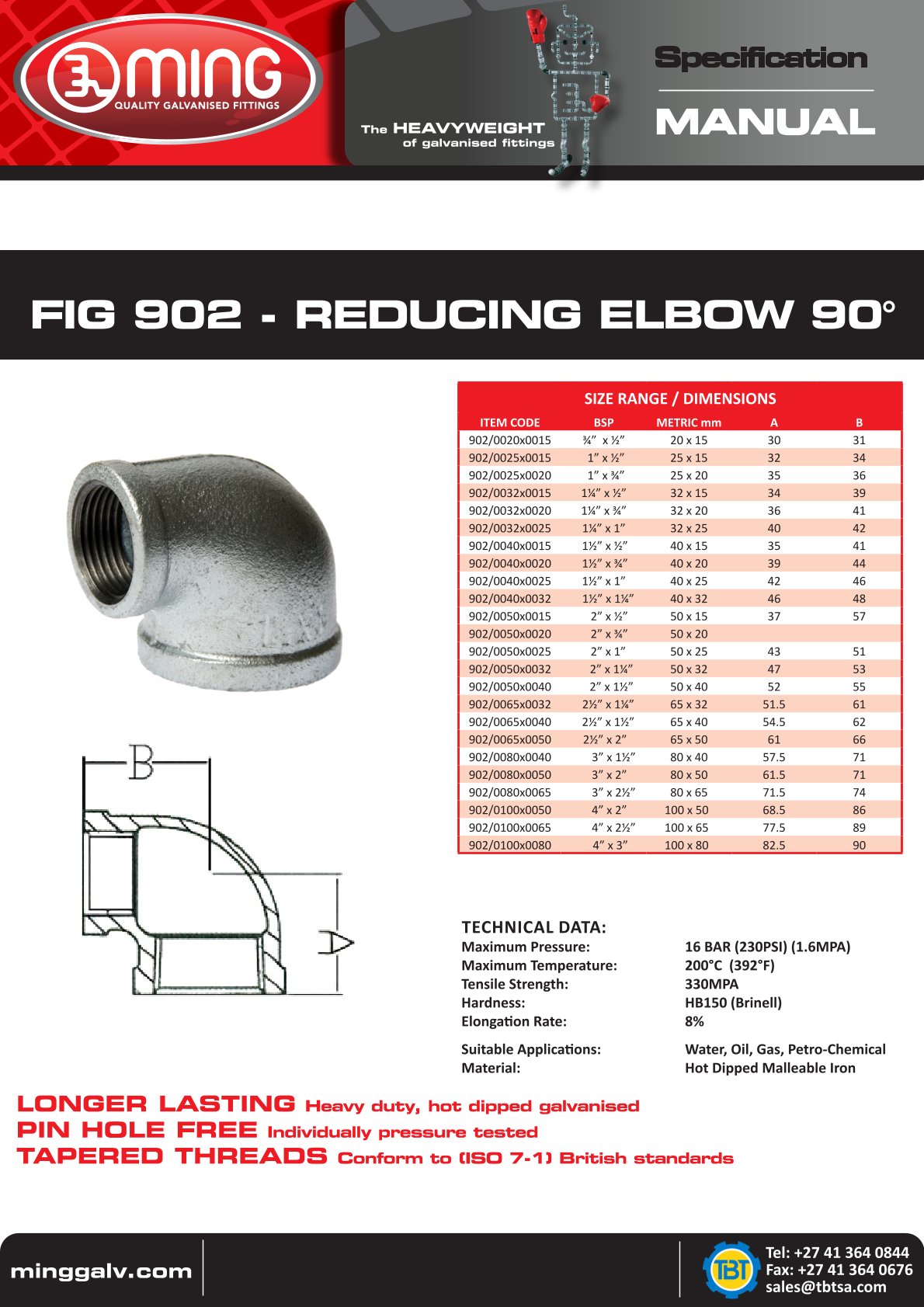

Product Dimensions
Dimenstions Table
| Item Code | BSP | METRIC mm | A | B |
|---|---|---|---|---|
| 902/0020x0015 | 3/4" x 1/2" | 20mm x 15mm | 30mm | 31mm |
| 902/0025x0015 | 1" x 1/2" | 25mm x 15mm | 32mm | 34mm |
| 902/0025x0020 | 1" x 3/4" | 25mm x 20mm | 35mm | 36mm |
| 902/0032x0015 | 1 1/4" x 1/2" | 32mm x 15mm | 34mm | 39mm |
| 902/0032x0020 | 1 1/4" x 3/4" | 32mm x 20mm | 36mm | 41mm |
| 902/0032x0025 | 1 1/4" x 1" | 32mm x 25mm | 40mm | 42mm |
| 902/0040x0015 | 1 1/2" x 1/2" | 40mm x 15mm | 35mm | 41mm |
| 902/0040x0020 | 1 1/2" x 3/4" | 40mm x 20mm | 39mm | 44mm |
| 902/0040x0025 | 1 1/2" x 1" | 40mm x 25mm | 42mm | 46mm |
| 902/0040x0032 | 1 1/2" x 1 1/4" | 40mm x 32mm | 46mm | 48mm |
| 902/0050x0015 | 2" x 1/2" | 50mm x 15mm | 37mm | 47mm |
| 902/0050x0020 | 2” x ¾” | 50mm x 20mm | ||
| 902/0050x0025 | 2" x 1" | 50mm x25mm | 43mm | 51mm |
| 902/0050x0032 | 2 "x 1 1/4" | 50mm x 32mm | 47mm | 53mm |
| 902/0050x0040 | 2 "x 1 1/2" | 50mm x 40mm | 52mm | 55mm |
| 902/0065x0032 | 2 1/2" x 1 1/4" | 65mm x 32mm | 51.5mm | 61mm |
| 902/0065x0040 | 2 1/2" x 1 1/2" | 65mm x 40mm | 54.5mm | 62mm |
| 902/0065x0050 | 2 1/2" x 2" | 65mm x 50mm | 61mm | 66mm |
| 902/0080x0040 | 3" x 1 1/2" | 80mm x 40mm | 57.5mm | 71mm |
| 902/0080x0050 | 3 1/2" x 2" | 80mm x 50mm | 61.5mm | 71mm |
| 902/0080x0065 | 3 1/2" x 2 1/2" | 80mm x 65mm | 71.5mm | 74mm |
| 902/0100x0050 | 4" x 2" | 100mm x 50mm | 68.5mm | 86mm |
| 902/0100x0065 | 4" x 2 1/2" | 100mm x 65mm | 77.5mm | 89mm |
| 902/0100x0080 | 4" x 3" | 100mm x 80mm | 82.5mm | 90mm |
| 902/0080x0065 | 3” x 2½” | 80mm x 65mm | 71.5mm | 74mm |
| 902/0100x0050 | 4” x 2” | 100mm x 50mm | 68.5mm | 86mm |
| 902/0100x0065 | 4” x 2½” | 100mm x 65mm | 77.5mm | 89mm |
| 902/0100x0080 | 4” x 3” | 100mm x 80mm | 82.5mm | 90mm |
