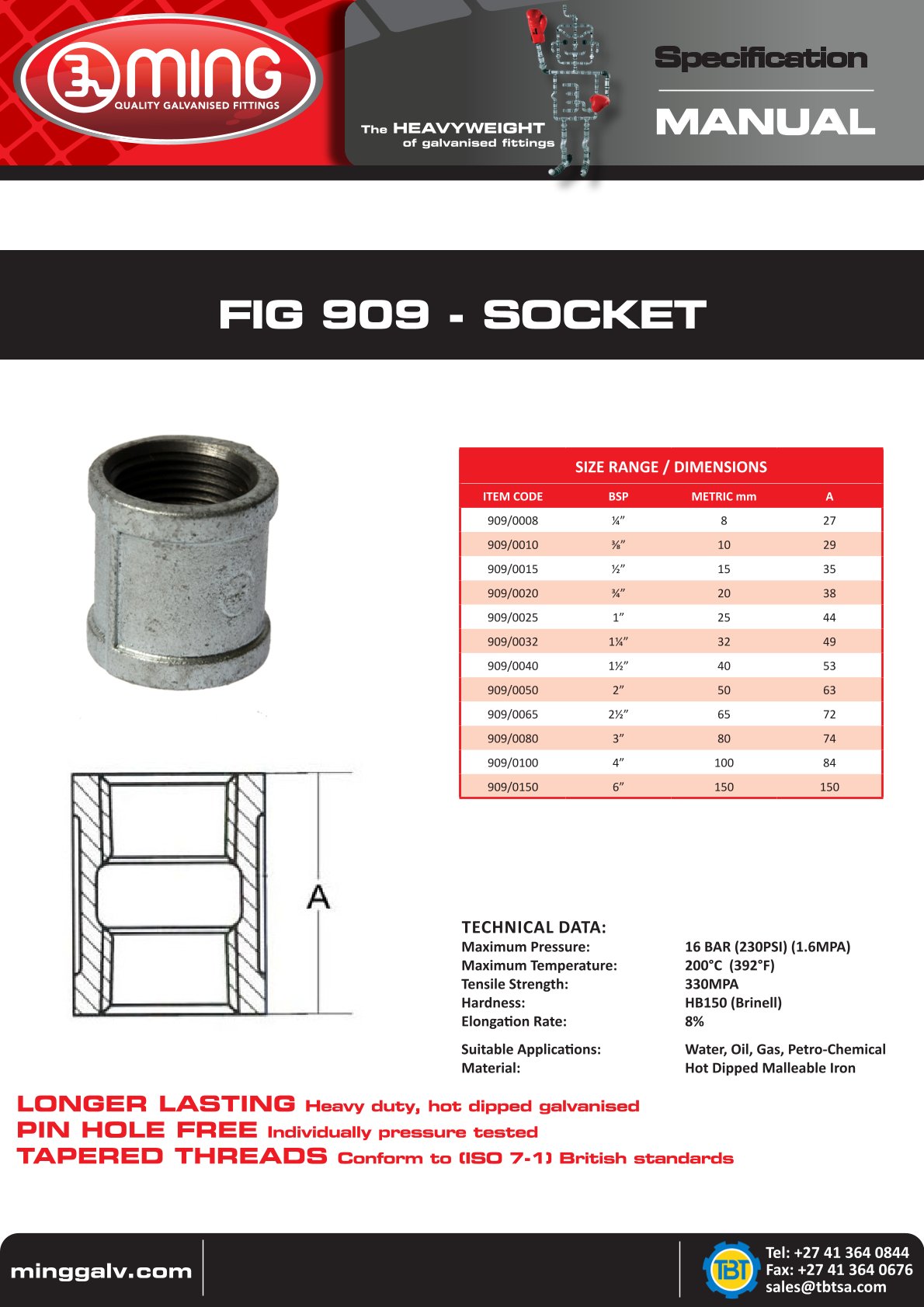

Features:
MING hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.
| Item Code | BSP | METRIC mm | A |
|---|---|---|---|
| 909/0008 | 1/4" | 8mm | 27mm |
| 909/0010 | 3/8" | 10mm | 29mm |
| 909/0015 | 1/2" | 15mm | 35mm |
| 909/0020 | 3/4" | 20mm | 38mm |
| 909/0025 | 1" | 25mm | 44mm |
| 909/0032 | 1 1/4" | 32mm | 49mm |
| 909/0040 | 1 1/3" | 40mm | 53mm |
| 909/0050 | 2" | 50mm | 63mm |
| 909/0065 | 2 1/2" | 65mm | 72mm |
| 909/0080 | 3" | 80mm | 74mm |
| 909/0100 | 4" | 100mm | 84mm |
| 909/0150 | 6" | 150mm | 150mm |
Maximum Pressure: 16 BAR (230PSI) (1.6MPA)
Maximum Temperature: 200°C (392°F)
Tensile Strength: 330MPA
Hardness: HB150 (Brinell)
Elongation Rate: 8%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Hot Dipped Malleable Iron
