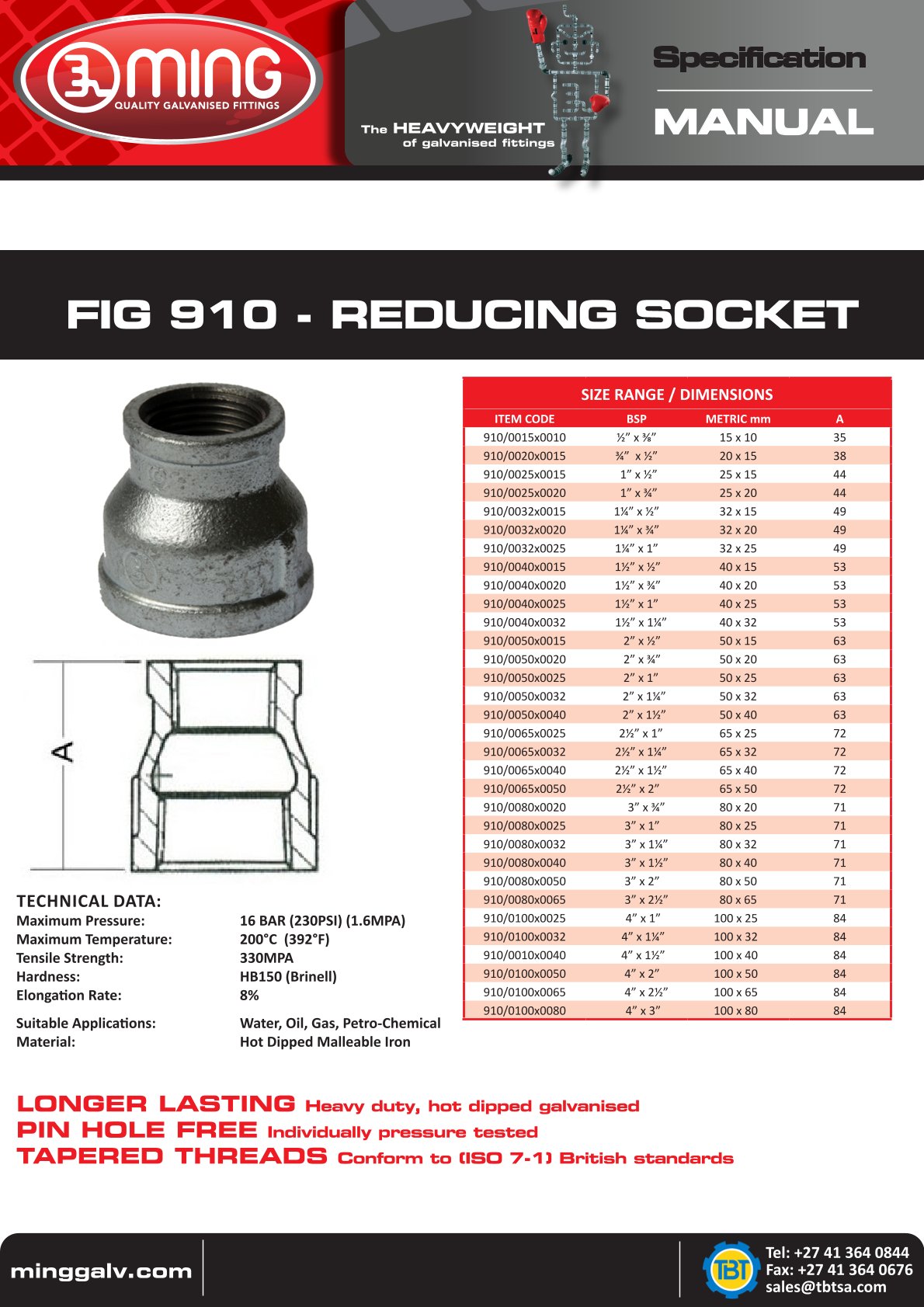

Product Dimensions
| Item Code | BSP | Metric Conversion | A |
|---|---|---|---|
| 910/0015x0010 | 1/2" x 3/8" | 15mm x 10mm | 35mm |
| 910/0020x0015 | 3/4" x 1/2" | 20mm x 15mm | 38mm |
| 910/0025x0015 | 1" x 1/2" | 25mm x 15mm | 44mm |
| 910/0025x0020 | 1" x 3/4" | 25mm x 20mm | 44mm |
| 910/0032x0015 | 1 1/4" x 1/2" | 32mm x 15mm | 49mm |
| 910/0032x0020 | 1 1/4" x 3/4" | 32mm x 20mm | 49mm |
| 910/0032x0025 | 1 1/4" x 1" | 32mm x 25mm | 49mm |
| 910/0040x0015 | 1 1/2" x 1/2" | 40mm x 15mm | 53mm |
| 910/0040x0020 | 1 1/2" x 3/4" | 40mm x 20mm | 53mm |
| 910/0040x0025 | 1 1/2" x 1" | 40mm x 25mm | 53mm |
| 910/0040x0032 | 1 1/2" x 1 1/4" | 40mm x 32mm | 53mm |
| 910/0050x0015 | 2" x 1/4" | 50mm x 15mm | 63mm |
| 910/0050x0020 | 2" x 3/4" | 50mm x 20mm | 63mm |
| 910/0050x0025 | 2" x 1" | 50mm x 25mm | 63mm |
| 910/0050x0032 | 2" x 1 1/4" | 50mm x 32mm | 63mm |
| 910/0050x0040 | 2" x 1 1/2" | 50mm x 40mm | 63mm |
| 910/0065x0025 | 2 1/2" x 1" | 65mm x 25mm | 72mm |
| 910/0065x0032 | 2 1/2" x 1 1/4" | 65mm x 32mm | 72mm |
| 910/0065x0040 | 2 1/2" x 1/1/2" | 65mm x 40mm | 72mm |
| 910/0065x0050 | 2 1/2" x 2" | 65mm x 50mm | 72mm |
| 910/0080x0020 | 3” x ¾” | 80mm x 20mm | 71mm |
| 910/0080x0025 | 3” x 1” | 80mm x 25mm | 71mm |
| 910/0080x0032 | 3” x 1¼” | 80mm x 32mm | 71mm |
| 910/0080x0040 | 3” x 1½” | 80mm x 40mm | 71mm |
| 910/0080x0050 | 3” x 2” | 80mm x 50mm | 71mm |
| 910/0080x0065 | 3” x 2½” | 80mm x 65mm | 71mm |
| 910/0100x0025 | 4” x 1” | 100mm x 25mm | 84mm |
| 910/0100x0032 | 4” x 1¼” | 100mm x 32mm | 84mm |
| 910/0010x0040 | 4” x 1½” | 100mm x 40mm | 84mm |
| 910/0100x0050 | 4" x 2" | 100mm x 50mm | 84mm |
| 910/0100x0065 | 4” x 2½” | 100mm x 65mm | 84mm |
| 910/0100x0080 | 4" x 3" | 100mm x 80mm | 84mm |
