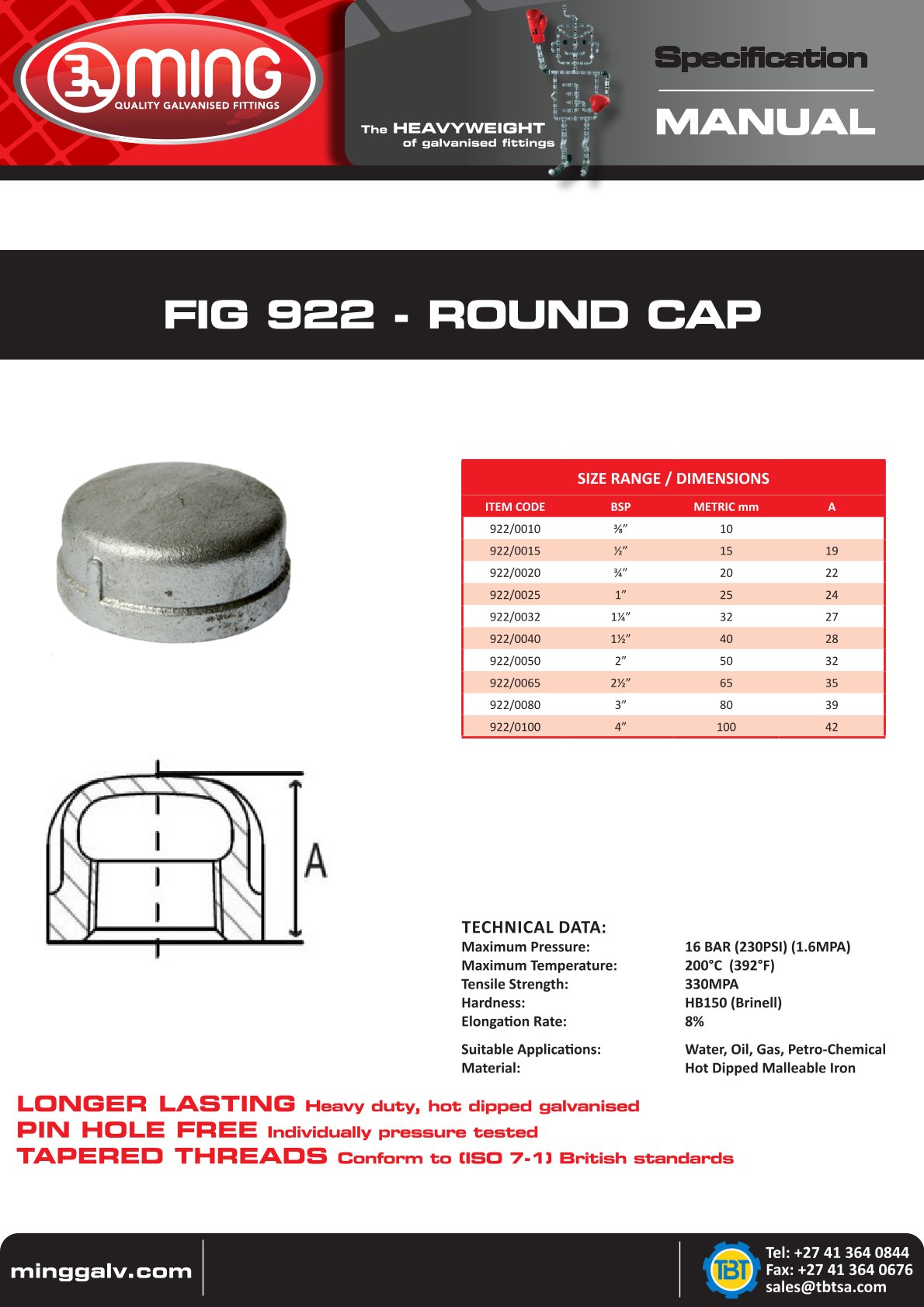

Features:
MING hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.
| Item Code | BSP | METRIC mm | A |
|---|---|---|---|
| 922/0010 | ⅜” | 10mm | |
| 922/0020 | 3/4" | 20mm | 22mm |
| 922/0025 | 1" | 25mm | 24mm |
| 922/0032 | 1 1/4" | 32mm | 27mm |
| 922/0040 | 1 1/2" | 40mm | 28mm |
| 922/0050 | 2" | 50mm | 32mm |
| 922/0065 | 2 1/2" | 65mm | 35mm |
| 922/0080 | 3" | 80mm | 39mm |
| 922/0100 | 4" | 100mm | 42mm |
Maximum Pressure: 16 BAR (230PSI) (1.6MPA)
Maximum Temperature: 200°C (392°F)
Tensile Strength: 330MPA
Hardness: HB150 (Brinell)
Elongation Rate: 8%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Hot Dipped Malleable Iron
