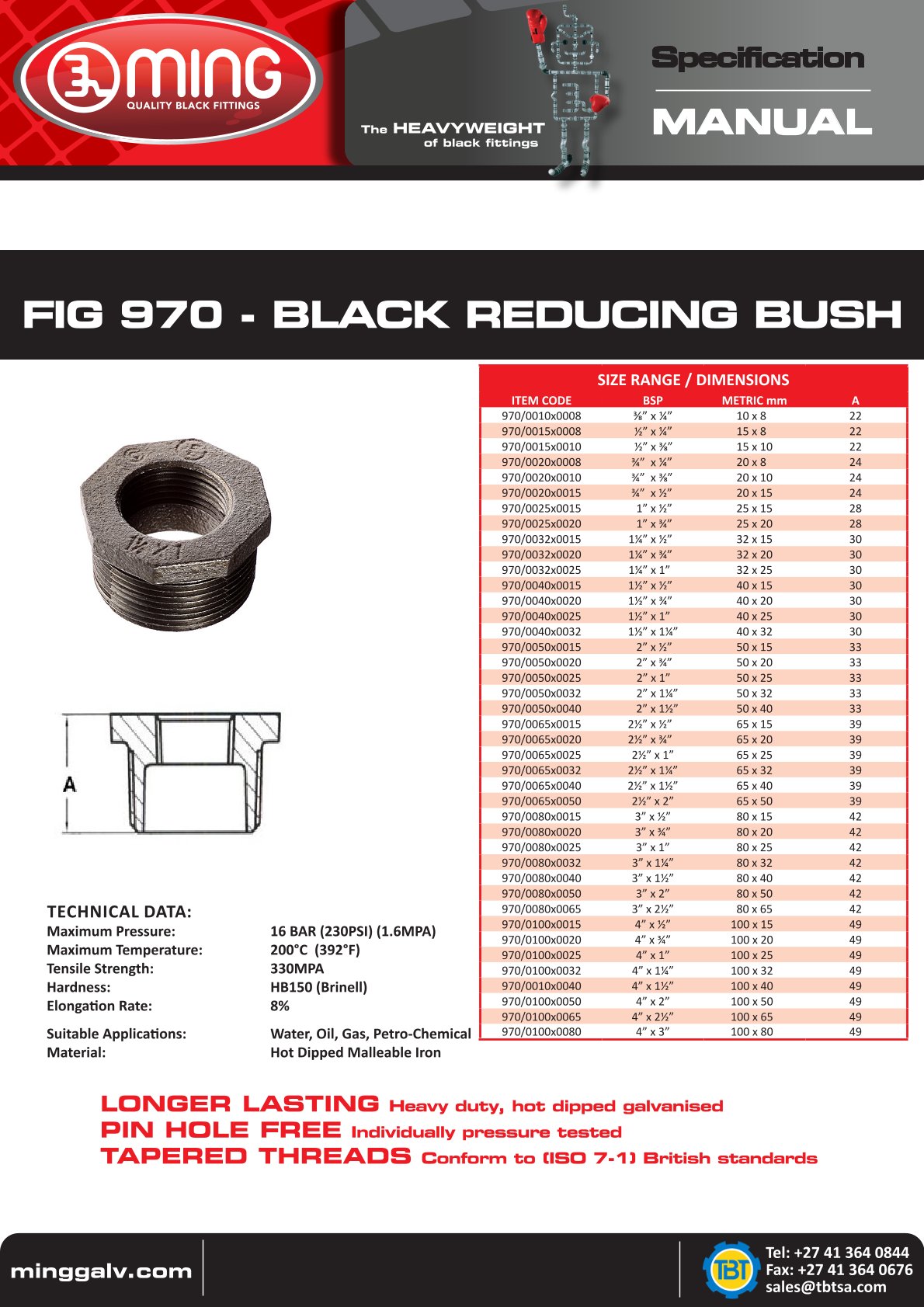

FIG 970 – Black Reducing Bush MxF

Product Dimensions

Dimenstions Table

ITEM CODE	BSP	METRIC mm	A
970/0010x0008	⅜” x ¼”	10mm x 8mm	22
970/0015x0008	1/2" x 1/4"	15mm x 8mm	22
970/0015x0010	1/2" x 3/8"	15mm x 10mm	24
970/0020x0008	¾” x ¼”	20mm x 8mm	24
970/0020x0010	¾” x ⅜”	20mm x 10mm	24
970/0020x0015	3/4" x 1/2"	20mm x 15mm	24
970/0025x0015	1" x 1/2"	25mm x 15mm	28
970/0025x0020	1" x 3/4"	25mm x 20mm	28
970/0032x0015	1 1/4" x 1/2"	32mm x 15mm	30
970/0032x0020	1 1/4" x 3/4"	32mm x 20mm	30
970/0032x0025	1 1/4" x 1"	32mm x 25mm	30
970/0040x0015	1 1/2" x 1/2"	40mm x 15mm	30
970/0040x0020	1 1/2" x 3/4"	40mm x 20mm	30
970/0040x0025	1 1/2" x 1"	40mm x 25mm	30
970/0040x0032	1 1/2" x 1 1/4"	40mm x 32mm	30
970/0050x0015	2" x 1/2"	50mm x 15mm	33
970/0050x0020	2" x 3/4"	50mm x 20mm	33
970/0050x0025	2" x 1"	50mm x 25mm	33
970/0050x0032	2” x 1¼”	50mm x 32mm	33
970/0050x0040	2” x 1½”	50mm x 40mm	33
970/0065x0015	2½” x ½”	65mm x 15mm	39
970/0065x0020	2½” x ¾”	65mm x 20mm	39
970/0065x0025	2½” x 1”	65mm x 25mm	39
970/0065x0032	2½” x 1¼”	65mm x 32mm	39
970/0065x0040	2½” x 1½”	65mm x 40mm	39
970/0065x0050	2½” x 2”	65mm x 50mm	39
970/0080x0015	3” x ½”	80mm x 15mm	42
970/0080x0020	3” x ¾”	80mm x 20mm	42
970/0080x0025	3” x 1”	80mm x 25mm	42
970/0080x0032	3” x 1¼”	80mm x 32mm	42
970/0080x0040	3” x 1½”	80mm x 40mm	42
970/0080x0050	3” x 2”	80mm x 50mm	42
970/0080x0065	3” x 2½”	80mm x 65mm	42
970/0100x0015	4” x ½”	100mm x 15mm	49
970/0100x0020	4” x ¾”	100mm x 20mm	49
970/0100x0025	4” x 1”	100mm x 25mm	49
970/0100x0032	4” x 1¼”	100mm x 32mm	49
970/0010x0040	4” x 1½”	100mm x 40mm	49
970/0100x0050	4” x 2”	100mm x 50mm	49
970/0100x0065	4” x 2½”	100mm x 65mm	49
970/0100x0080	4” x 3”	100mm x 80mm	49

Technical Data

Maximum Pressure: 16 BAR (230PSI) (1.6MPA)
Maximum Temperature: 200°C (392°F)
Tensile Strength: 330MPA
Hardness: HB150 (Brinell)
Elongation Rate: 8%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Hot Dipped Malleable Iron
